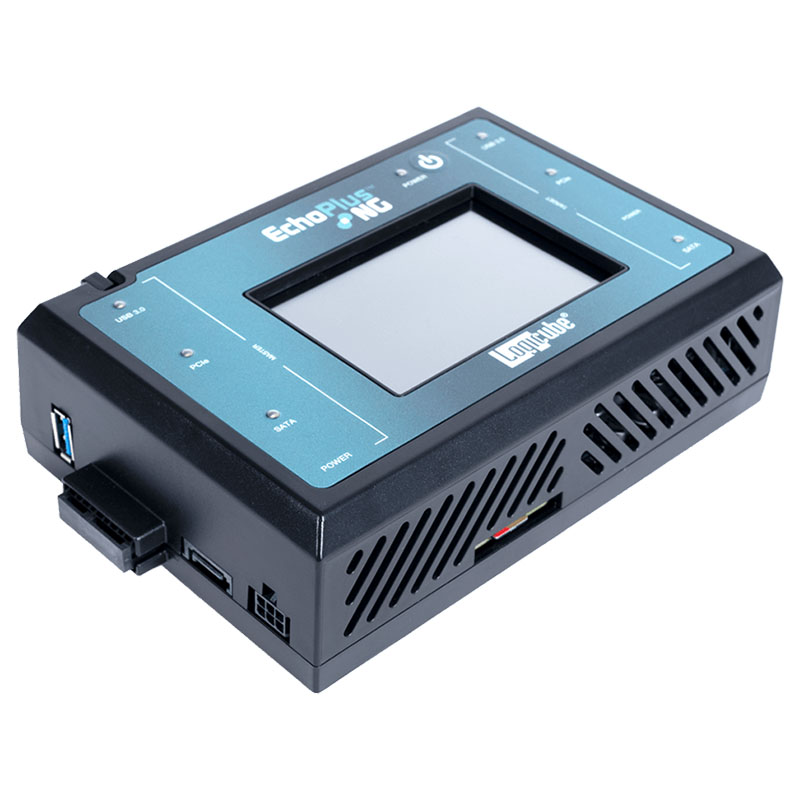

High-Speed Duplication
The EchoPlus™-NG hard drive duplicator will clone at blazing speeds of 18GB/min*
Multiple Cloning Modes
Supports Mirror (bit for bit copy) and CleverCopy (copies only data areas, skips blank sectors). For multiple partition drives, EchoPlus-NG automatically selects the optimum cloning method (Mirror or CleverCopy)

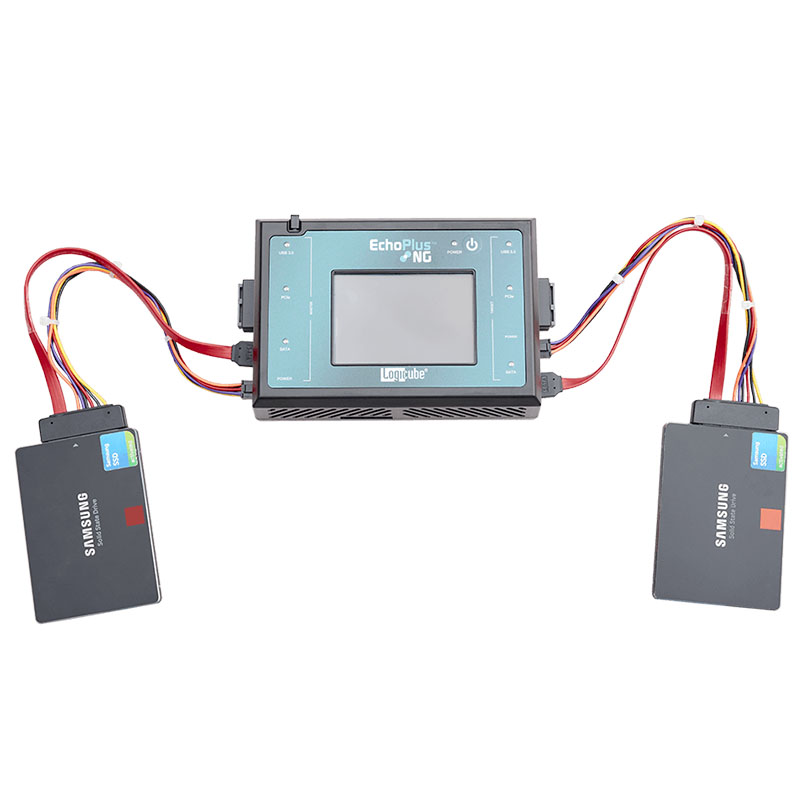

Single Target Cloning
Clone from 1 master drive to 1 target drive
Clone SATA drives.
Features 1 SATA master port and 1 SATA target port
Hash verification Option
Clone and verify the exact replication of the master drive in one single process. Features SHA-1, SHA256 or MD5 algorithms and hash verification is embedded in the audit trail/log file. Requires the purchase of an optional software activation package
PCIe Support
Clone PCIe M.2 AHCI or NVMe, PCIe and mini-PCIe express cards using the EchoPlus-NG and optional Logicube PCIe adapters. Features 1 PCIe master port and 1 PCIe target port. A PCIe Adapter kit (F-ADP-PCIe-T-KT) is available that contains 4 adapters to use with M.2 PCIe, M.2 NVMe, mSATA SSDs and PCIe and mini-PCIe cards
Multi-Image Master Option
Store multiple images created using EchoPlus-NG in a repository on a SATA drive or on a USB enclosure connected to the EchoPlus-NG and then clone to selected target drives
Clone USB Enclosures and Thumb Drives
Features 1 USB 3.0 master port and 1 USB 3.0 target port
Remote Operation
EchoPlus-NG allows you to control all operations from a remote computer using a web browser
IDE & Other Interfaces
The EchoPlus-NG can support IDE, mSATA, microSATA, eSATA type drives along with flash media with the purchase of optional adapters.
Advanced Administrative Functions
Administrators can create user profiles and save configurations
File Systems
Supports all OS and file systems including Linux and Mac® in Mirror mode. Supports FAT16/FAT32/NTFS and Linux (ext, ext2, ext3, ext4) in CleverCopy mode
Compact Footprint
The EchoPlus-NG features a compact size at 6.2″ X 4.2″ X 2.1″ (15.7cm X 10.6cm X 5.3cm) and weighs only 0.8lbs(.36kg), making it perfect for use on the workbench or in the field
Write-Protected Master
EchoPlus-NG master ports are automatically write-blocked to prevent any alteration to sensitive data on the master drive
Audit Trail/Log Report
Detailed information about the cloning session is provided, and reports can be printed from a browser. Report includes a digital signature for authentication purposes
Wipe Feature
The EchoPlus-NG provides a comprehensive wipe mode. DoD wipe, Secure Erase and custom pass settings. Meets NIST 800-88 guidelines.
Drive Statistics
Provides advanced S.M.A.R.T. drive information.
Error Handing
A error granularity user-selectable setting provides more control over error handling of the master drive. Four cluster size settings are provided to determine the number of sectors to be skipped when a bad sector is found on the master drive. Users can also choose to skip bad sectors or abort the cloning operation when bad sectors are encountered on the master drive.
HPA/DCO
Clone or wipe HPA/DCO areas of the drive
Colour Touch Screen Display
A vibrant display provides an intuitive and easy to use interface and includes a built-in stylus
One-year Standard Warranty
The EchoPlus-NG hard drive duplicator comes complete with a one year parts and labor warranty. Both an optional 1 year extended warranty (total of 2 years) and a 2 year extended warranty (total of 3 years) are available
