Desktop

WriteProtect™-BAY

Dimensions:

8.3”L X 5.8”W X 1.7”H (21.1cm X 14.7cm X 4.3cm)

Weight:

2.0 lbs (.90kg)

Power Requirements:

72 watts (including 2 drives plus 1 USB3 to SATA drive)

Power Consumption:

+12VDC +/- 5% from PC required

Operating Tempture:

Relative Humidty:

Agency Approvals:

RoHs compliant

We do not keep stock of our specialist security hardware, as each item is sourced directly from our suppliers on request. Please complete the form below so our team can verify your requirements, confirm availability, and provide a quote with expected lead times.

‍

Thank you! Your submission has been received!

Oops! Something went wrong while submitting the form.

Product Description



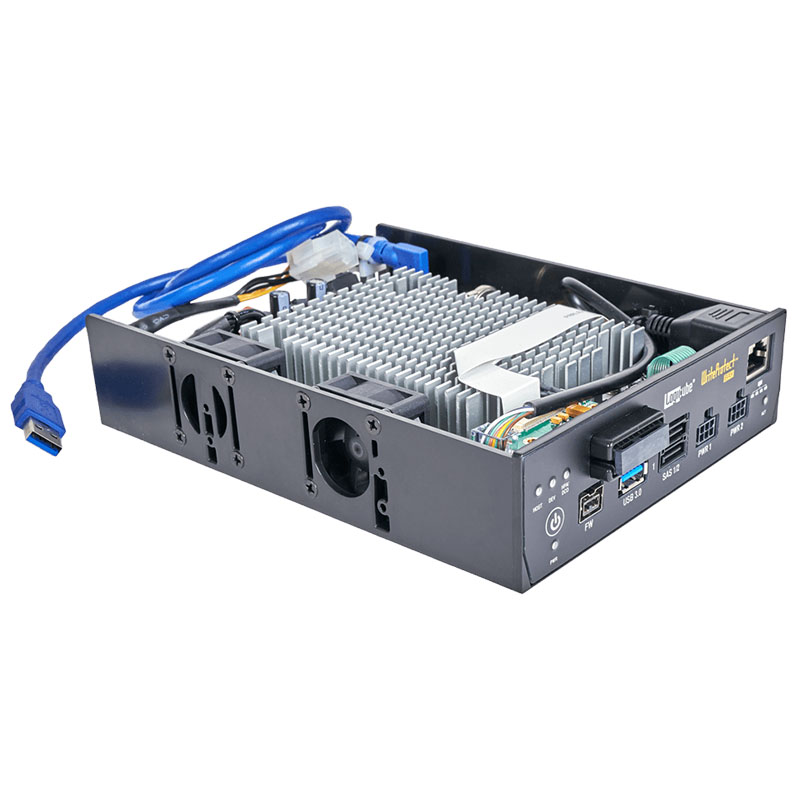

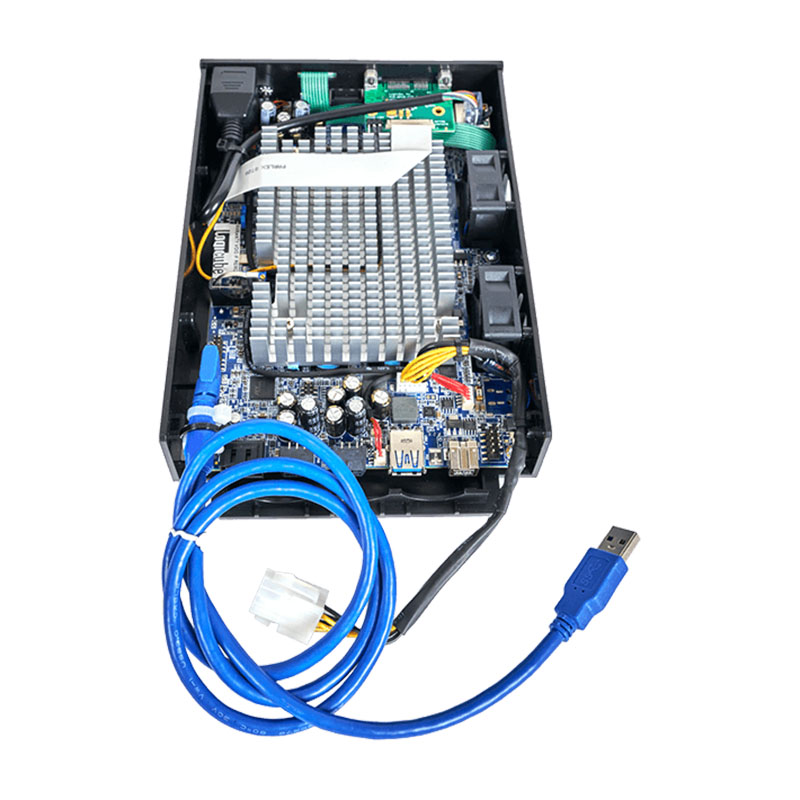

The WriteProtect™-BAY provides digital forensic professionals with fast, secure, read-only write-blocking of suspect hard drives. six interfaces, SAS/SATA/FireWire/PCIe/USB3/IDE are supported in a 5.25″, half-height design that fits into the drive bay of your forensic workstation. Logicube also offers a WriteProtect-PORTABLE or a WriteProtect-DESKTOP version of the product. Click for more information, WriteProtect-DESKTOP or WriteProtect-PORTABLE.

Fast Superspeed USB3.0 host connection
Supports PCIe SSDs (M.2 SATA/AHCI/NVMe), PCIe and mini-PCIe cards with optional adapters
Supports SAS, SATA, FireWire, USB3.0, IDE source drives
Browser-based user interface for drive preview, software updates, HPA/DCO management
Connect and image multiple source drives simultaneously with your forensic imaging software

‍

Product Feature



Ultra-Fast USB3.0
‍The WriteProtect-BAY features a USB3.0 host connection for extremely fast operation

‍Supports 6 Interfaces
‍The WriteProtect provides read-only, write-blocked support for SAS/SATA/USB3.0/2.0/1.1/FW400/800/PCIe storage technologies and an adapter is included to support 2.5″/3.5″ IDE drives

‍PCIe support
‍Support is available for M.2 PCIe (SATA, AHCI and NVMe types), PCIe and min-PCIe express cards, using the WriteProtect’s PCIe port and optional adapters

‍Multiple Ports

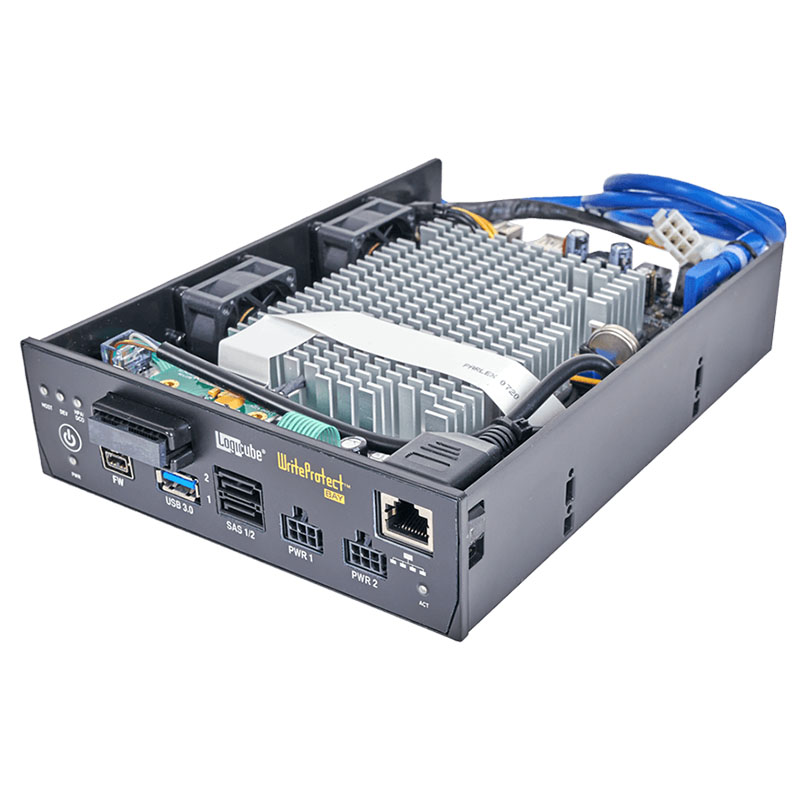

‍Write-protected source ports include:

2 SAS/SATA
1 USB 3.0
1 Firewire
1 PCIe

A Gigabit Ethernet port for network connectivity is built-in.

‍Multi-task
‍Improve efficiency and shorten the evidence collection process with the ability to image (using your own forensic imaging software) multiple source drives simultaneously

‍Browser-based User Interface
‍Use the browser-based user interface to manage all WriteProtect operations including software updates, connect to your network using the WriteProtect’s Gigabit Ethernet Port
‍
‍Preview
‍Preview drives connected to WriteProtect using the browser-based user interface

‍5 LEDs
‍Easily monitor functions with 5 LEDs for power, host, device, activity and HPA/DCO detection

‍HPA/DCOHPA/DCO detection and capture is easily managed via the WriteProtect’s browser-based user interface

‍Hard Drive Support
‍Optional adapters are available to support 1.8″ IDE, IDE ZIF, M.2 PCIe (SATA, AHCI, NVMe types), PCIe and mini-PCIe cards, mSATA, microSATA, eSATA and flash media

‍Compatibility
‍The WriteProtect is compatibly with forensic acquisition and analysis software

‍One-year Standard Warranty
‍The system comes complete with a one year parts and labor warranty. Both an optional 1 year extended warranty (total of 2 years) and a 2 year extended warranty (total of 3 years) are available.

‍In The Box
‍The WriteProtect-BAY includes the following:

2 SAS/SATA power and data cables
1 Firewire cable
1 USB 3.0 type A Male to Micro-B cable
1 CAT6 network cable
1 2.5″/3.5″ IDE to SATA adapter
1 Dual 4-pin molex to 6-pin PCIe Y adapter
Users manual on CD-ROM

Product Accessories



PCIe Adapter Kit

Kit for M.2 PCIe, M.2 NVMe, M.2 SATA, mSATA SSD, PCIe and mini-PCIe cards. Includes 1 each: M.2 PCIe, M.2 SATA, mSATA, Mini PCIe.

mSATA to SATA Adapter

mSATA to SATA adapter to clone mSATA type drives.

microSATA to SATA Adapter

microSATA to SATA adapter to clone microSATA drives.

eSATA Cable

Cable for eSATA hard drives to clone eSATA drives.

U.2 NVMe to PCIe Adapter

U.2 NVMe to PCIe adapter for U.2 NVMe SSDs.

18″ Extended SATA Cable Set

18″ cable for SATA drives.

2.5″/3.5″ IDE to SATA Adapter

2.5/3.5″ IDE to SATA adapter to clone 2.5″ or 3.5″ IDE/PATA drives.

1.8″ ZIF to IDE and 1.8″ IDE to SATA Adapter

1.8″ ZIF to IDE and 1.8″ IDE to SATA adapter pack to clone 1.8″ IDE/PATA drives.

USB Flash Card Reader

Used for cloning various flash media, including compact flash, SD cards.

USB3 to SATA Adapter

Convert USB 3.0 ports for use with SATA drives.

SATA/SAS Data & Power Replacement Cable

SATA/SAS data & power replacement cable.

‍

Product Hardware and Software options



Firmware updates via USB or network connection
Remote access via network connection
Web Interface
