The ZXi^™-10G is the first hard drive duplicator on the market to include two 10GbE network connections, allowing you to streamline your workflow and clone directly to or from a network repository or a NAS device. The ZXi-10G also provides the ability, with an optional PCIe Expansion Module to clone M.2 NVMe SSDs. The ZXI-10G efficiently performs hard drive duplicating tasks, including PC deployments, OS upgrades, content/application distribution and data back-up tasks.

2 10GbE network ports for fast cloning to/from a network repository or NAS
Clone up to a total of 6 SATA/SAS-ready targets, add 4 targets with an optional expansion kit
Clone M.2 NVMe SSDs using the optional PCIe Expansion Module
Clone up to 8 Type-A USB 3.2 drives and 3 Type-C drives
Two Thunderbolt^™ 4/USB-C port available to clone to/from Thunderbolt storage enclosures
Blazing fast hard drive duplicating at up to 29GB/min*
Supports SATA, USB3 in the base unit, optional support for SAS drives is available
Support for IDE, ZIF, mSATA, microSATA, eSATA drives and compact flash media is available with optional adapters
Supports both mirror copy (100% bit for bit) and a “CleverCopy” mode that intelligently copies only data areas of the hard drive
Safely sanitise drives with a wipe feature. Supports DoD 7 pass, Secure Erase and meets NIST 800-88 guidelines

Hard Drive Duplication

The ZXi™-10G supports cloning 3.5″/2.5″ SATA hard drives,3.5″/2.5″ SAS (optional), USB enclosures and thumb drives. M.2 NVMe drives are supported with an optional PCIe Module. Optional adapters are available for 1.8″/2.5″/3.5″ IDE and IDE ZIF drives, eSATA, microSATA, mSATA and flash media. For information on which adapters suit your needs refer to our ZXi adapter guide.

M.2 NVMe Support

M.2 NVMe SSDs are supported with the optional 8-port PCIe Expansion Module. Supports cloning up to 16 M.2 NVMe SSDs using two modules. Click here for the PCIe Expansion Module datasheet.

Network Cloning

Allows network access (upload/download) to drive images and log files. Utilize the high-speed 10GbE connections to clone to/from a network repository or NAS solution and achieve transfer speeds of up to 30GB/min. Two 10GbE ports are available for use. A 2.5GbE port is available to minimize bottlenecks.

USB Cloning

Supports cloning to and from USB enclosures and thumb drives. 9 ports are available:

6 USB 3.2 Gen 1 (Type A)

2 USB 3.2 Gen 2 (Type A)

1 USB 3.2 Gen 2×2 (Type C)

Multi-Target Cloning

Clone from 1 master to 5 SATA or 5 SAS (if SAS option is purchased) target drives, or clone from a ZXi-10G created image stored on an external USB enclosure or on a network repository to a total of 6 SATA/SAS target hard drives

Data Transfer Rate

The ZXi-10G duplicates hard drives at speeds up to 29GB/min*

Multiple Master/Source and Target Drives

Users can assign any drive stations as a master or target drive

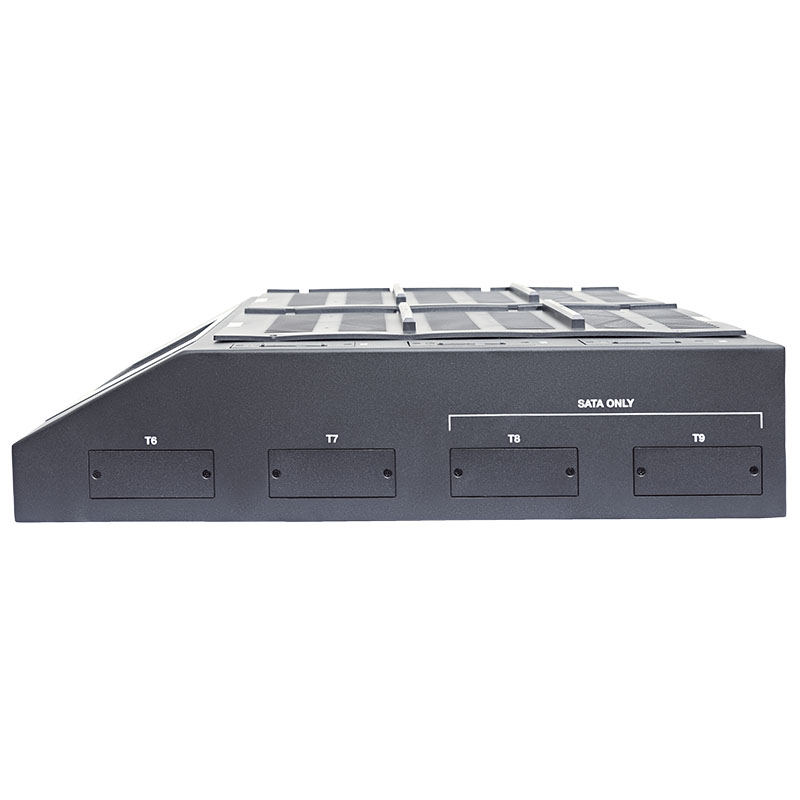

4 Drive Expansion Kit

The optional expansion kit provides an additional 2 SAS/SATA and 2 SATA only targets for a total of 9 SATA (7 SAS) targets when cloning from a master hard drive or 10 SATA (8 SAS) targets from a ZXi-10G created image stored on a network repository or from a repository stored on an external USB enclosure connected to the ZXi-10G. Click here for a picture of the 4 Drive Expansion kit.

Wipe Feature

Choose from Secure Erase, DoD wipe, and custom pass settings. Complies with NIST 800-88 guidelines. User selectable option to verify wipe pass value during the wipe process.

Hash Verification Option

This optional feature allows the user to clone and verify the exact replication of the master drive. Features user-selectable SHA-1, SHA256 or MD5 algorithms

Multiple Cloning Modes

Supports Mirror (bit for bit copy) and CleverCopy (copies only data areas, skips blank sectors)

Audit Trail/Log Report

Detailed information about the cloning session is provided, and reports can be printed from a browser or via CLI. Report includes a digital signature for authentication purposes

Flat-Bed Design

The ZXi-10G features a flat-bed design with removable, field-replaceable drive stations. The drive stations provide drive power port protection.

Remote Operation

ZXi-10G allows you to control all operations from a remote computer using a web browser or Command Line Interface (CLI)

Cloning

Supports cloning from a ZXi-10G-created image stored on a USB enclosure connected via one of the ZXi-10G’s USB 3.0 ports, from a ZXi-10G-created image stored on a shared network drive location, or clone from a master/source hard drive

Multi-Session Capability

Allows users to perform multiple tasks including cloning wiping or hashing concurrently

Write-Protected Source

ZXi-10G drive stations or USB ports that are designated as a master by the user are automatically write-blocked to prevent any alteration to sensitive data on the source drive

Large Capacity Drives

The ZXi-10G provides support for today’s large capacity drives (>2TB)

Task Macro

Allows users to set specific tasks to be performed sequentially. For example, set task 1 to wipe, task 2 to clone, task 3 to hash.

File Systems

Supports all OS and file systems including Linux and Mac in Mirror mode. Supports FAT16/FAT32/NTFS and Linux (ext, ext2, ext3, ext4) in CleverCopy mode.

Removable Drive Stations

Provides fast, easy connection to a variety of hard drive types. Removable drive stations are field replaceable.

Blank Disk

Blank disk feature checks if the drive is blank

Drive “Time Out”

A user-selectable feature will set a specific “time-out” for drives connected to ZXi-10G. After a specified idle time the drive will automatically be put into standby mode, powering down the drives.

Advanced Administrative Functions”

Administrators can create/manage image repositories, manage network settings, create user profiles, save configurations, manage drive station assignments

Error Handling

An error granularity user-selectable setting provides more control over error handling of the master drive. Four cluster size settings are provided to determine the number of sectors to be skipped when a bad sector is found on the master drive. The ZXi-10G can also abort or skip bad sectors found on the master drive.

HPA/DCO

Clone or wipe HPA/DCO areas of the drive

Colour Touch Screen Display

A vibrant display provides an intuitive and easy to use interface

Compact Footprint

The ZXi-10G takes up minimal real estate on the work bench at a size of 3.7″ X 19″ X 17.2″ (9.39cm X 48.26cm X 43.68cm) and weighs only 14lbs (6.4kg)

‍
